Advantages that speak for themselves

The versatile TAFE 6028M stands out from its class with technical highlights and a robust construction that guarantees durability and reliability. Its compact design, combined with excellent performance data, makes it an all-rounder for a wide range of tasks – ideal for use in both private and commercial areas.

24,5 HP - 1318 CC

Powerful engine from Mitsubishi

25 km/h

Top speed

739 KG Lift Capacity

Leading in class

26 l/min

Working hydraulics

Accesories

6028M

Discover the capabilities of the TAFE 6028M with a selection of high-quality accessories, including front loaders and customized towing devices to meet different requirements.

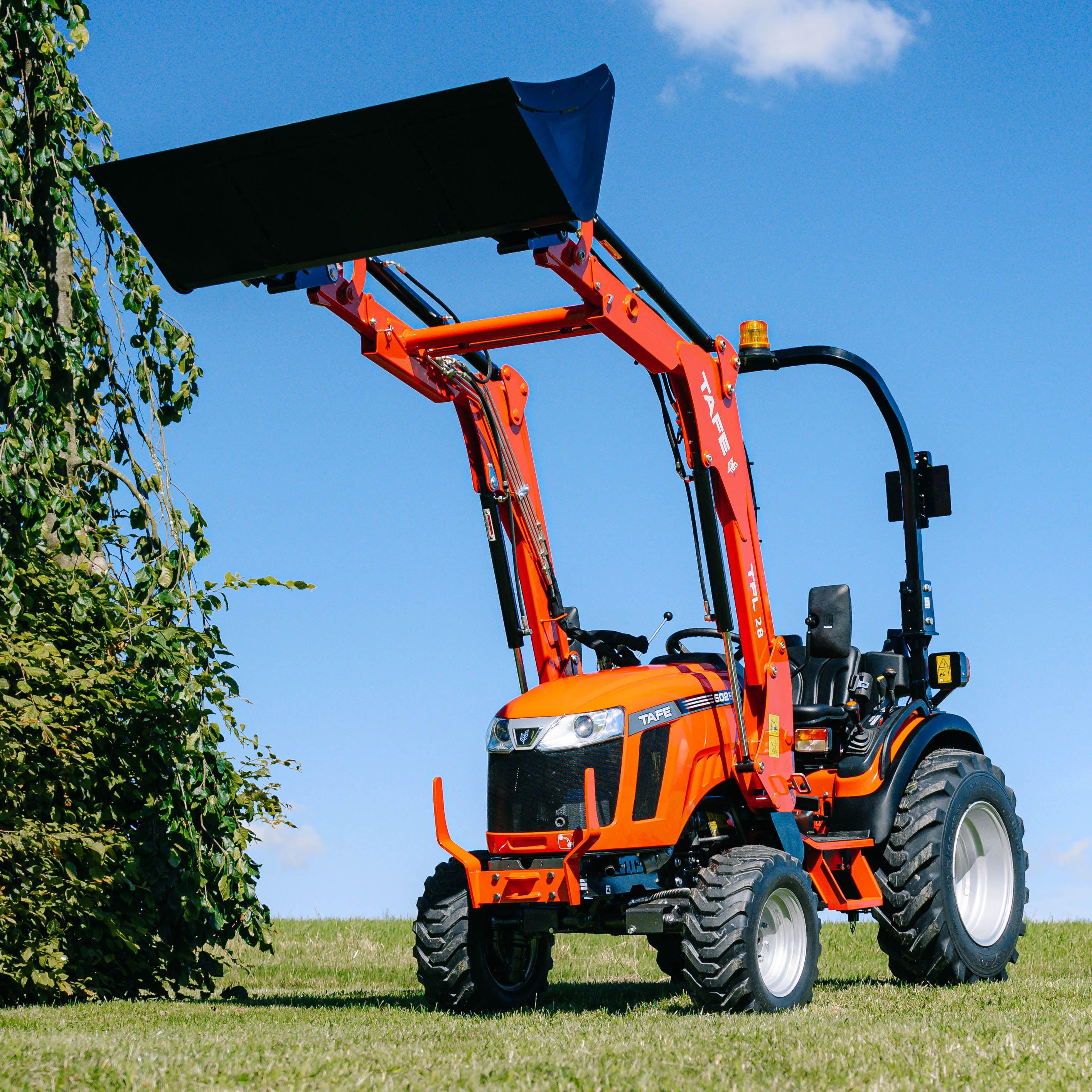

Frontloader TFL-28

  • Lifting capacity at maximum lift height: 552 kg
  • Quick-change system
  • Mechanical parallel guide
  • Euro attachment
  • Incl. bucket (1420 mm) Optional:
  • 3rd control circuit

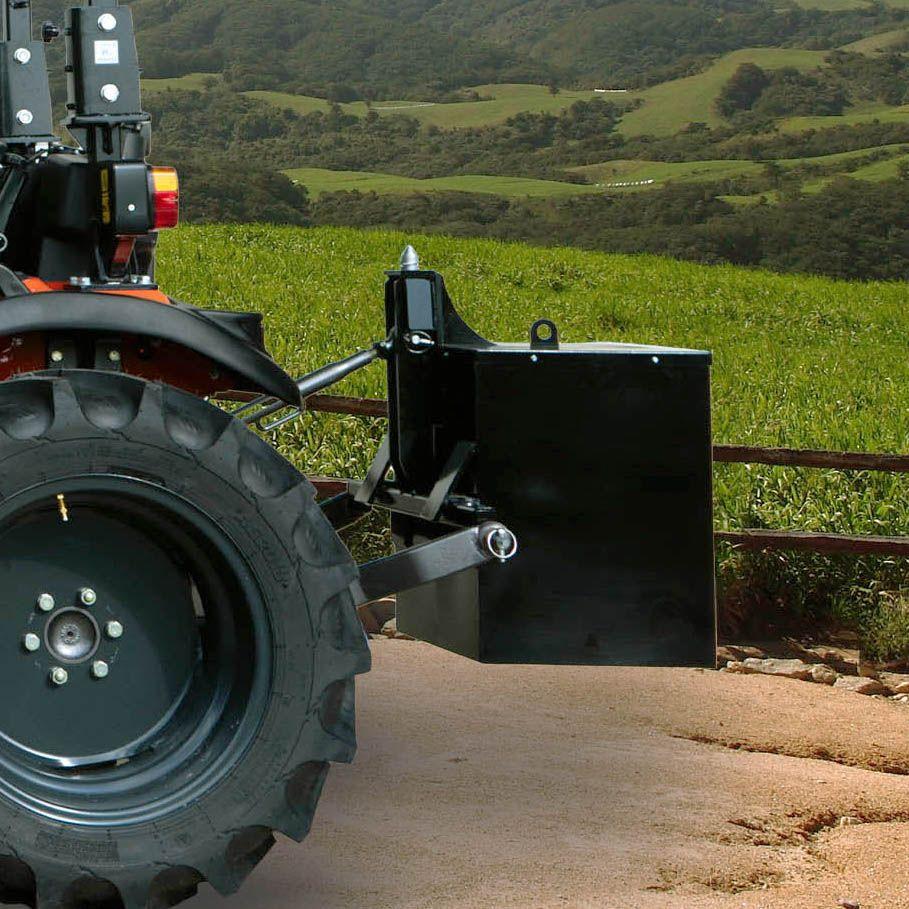

Rear weight (Optional)

  • Three-point hitch
  • Easy to assemble without towing
  • Dimensions: 410 x 410 x 540 mm
  • Recommended filling:
  • Sand: ~230 kg
  • Cement: ~290 kg

Front Linkage (Optional)

  • Municipal cat with coupling triangle
  • Two hydraulic connections
  • Float position in the lifting cylinders

Configuration with bearing block

  • Bearing block
  • Towing eye with one-hand connector
  • K50 ball coupling
  • Optional Extra

Configuration with draw bar

  • Drawbar (standard)
  • Optional:
  • Detachable drawbar with one-handed connector
  • Car 50 ball stud
Tyres

Agricultural

Diagonal-ply agricultural tires provide robust and reliable traction on a wide variety of soil types. The diagonal carcass structure ensures high stability and durability, ideal for use in demanding agricultural applications and on uneven terrain or arable land.

Diagonal Field Studs

Front: 180/85 D12

Rear: 8.3-20

Min. external width: 110 cm

Industrial tyres

Front: 23 x 8.50-12

Rear: 10.5/80-18

Min. exterior width: 121 cm

Radial Field Tyres

Front: 23 x 10.50-12

Rear: 280/70 R20

Min. outer width: 124 cm

Lawn Tyres

Front: 23 x8.50-12

Rear: 33 x15.50-16.5

Min. external width: 130 cm

Municipal tyres

Front: 215/65 R14

Rear: 300/70 R20

Min. exterior width: 123 cm

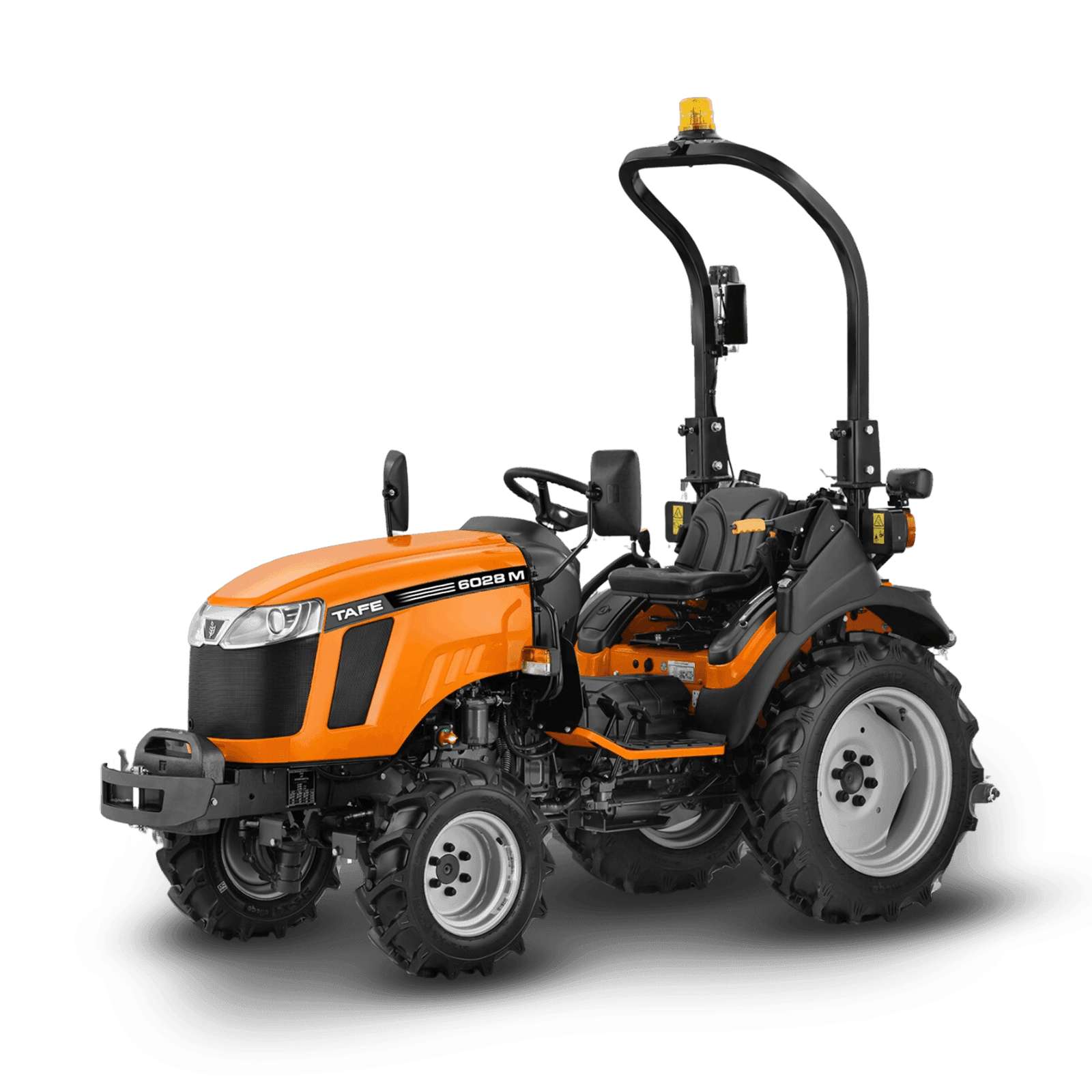

TAFE 6028M

Technical data

Dimensions

Lenght
mm
3135
Width
mm
1100
Height
mm
2310
Wheelbase
mm
1550
Ground clearance
mm
260
Weight
kg
1095
Turning radius (outside)
mm
2440

Gauge

in front
mm
928
rear
mm
888

Max

in front
kg
600
rear
kg
1000

Permissible total weight

kg
1600

Towing capacity

unchecked
kg
950
unchecked
kg
2000

Motor

Manufacturer
Mitsubishi
Type
Water-cooled 3-cylinder 4-stroke diesel
Model
MVS3L2 Stage V
injection
indirect
Performance
HP (KW)
24,5 (18)
Number of cylinders
3
Speed
U/min
2600
Displacement
ccm
1319
Air filter
Dry air filter with clogging indicator
Battery
Volt
12

Gearbox

Type
Manual Transmission
Manual transmission
9F + 3R
Top speed
km/h
25

Coupling

Single-disk dry clutch 200 mm

Steering

Steering

Tank contents

Liters
23

Hydraulic system

Pump
2 gear pumps
Working hydraulics
l/min
26
Servo
l/min
16
Three-point hitch
Category 1
Max. lifting capacity at coupling point, draw bar
kg
739
Control
Position + pulling resistance
Additional control unit
1x double-acting

PTO shaft

Connection
Mechanical
Rear
U/min
540 / 540E (750)

Driven wheels

4 (2 and 2 switchable)

Standard tyres

Type
Diagonal agricultural tyres
in front
180/85D12
rear
8.3x20
